TM-55 Thermal Window & Door System
14.8 mm polyamide thermal break, 55 mm frame depth high-performance architectural window and door system.
The TM-55 is an insulated window and door system featuring a 55 mm frame depth, 63 mm sash depth, and a 14.8 mm polyamide thermal break. Engineered with 1.6 mm to 2 mm wall thickness options, glass thickness compatibility ranging from 4 mm to 39 mm, and multi-point locking mechanisms for reliable acoustic and thermal insulation.
Technical Specifications
- Frame Depth
- 55 mm
- Number of Chambers
- 3
- Glass Thickness Range
- 4–39 mm
- Thermal Break Width
- 14.8 mm
Thermal Performance
- Uw Value (Overall Window)
- 1.9 W/m²K
- Uf Value (Frame)
- 3.24 W/m²K
- Tested Glazing Configuration
- Ug = 0.922 W/(m²·K), 32 mm double/triple unit
Acoustic Performance
- Sound Insulation Index (Rw)
- 38 dB
Performance Classes (EN Standards)
- Wind Load Resistance
- C4
- Water Tightness
- E900
- Air Permeability
- Class 4
Surface Finish Options
- Anodized
- Electrostatic Powder Coating
- Wood Effect Transfer
Color Range
Full RAL spectrum, architectural surface finishes

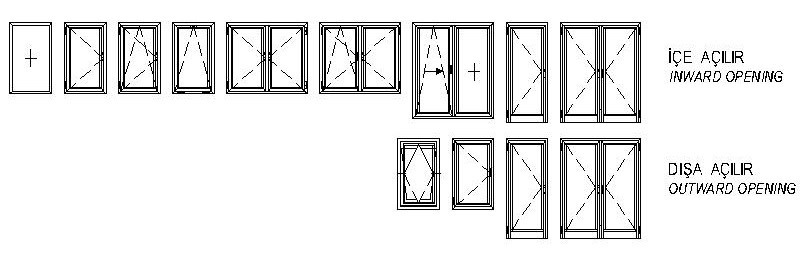

Gallery
