TE-56 Thermal Window & Door System
18 mm polyamide thermal break, 57 mm frame width high-performance architectural window and door system.
The TE-56 is an insulated window and door system featuring a 57 mm frame width, 59 mm sash depth, and an 18 mm polyamide thermal break. Engineered with a 1.3 mm system wall thickness, glass thickness compatibility ranging from 4 mm to 38 mm, and multi-point locking mechanisms (PVC accessory channel) for reliable insulation.
Technical Specifications
- Frame Depth
- 57 mm
- Glass Thickness Range
- 4–38 mm
- Thermal Break Width
- 18 mm
Thermal Performance
- Uf Value (Frame)
- 3.18 W/m²K
- Tested Glazing Configuration
- Ug = 0,974 W/(m²·K), ΦB = -12,177 W/m (referans hesap)

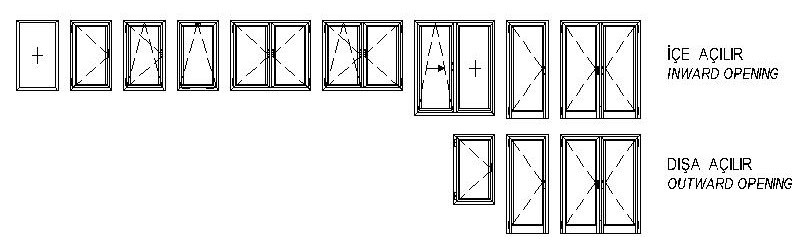

Gallery
