TH-55 Thermal Window & Door System
14.8 mm polyamide thermal break, 55 mm frame depth high-performance architectural window and door system.
The TH-55 is an insulated window and door system featuring a 55 mm frame depth, 63 mm sash depth, and a 14.8 mm polyamide thermal break. Engineered with a 1.8 mm system wall thickness, glass thickness compatibility ranging from 4 mm to 40 mm, and Euro-norm/PVC-channel compatible multi-point locking accessories.
Technical Specifications
- Frame Depth
- 55 mm
- Glass Thickness Range
- 4–40 mm
- Thermal Break Width
- 14.8 mm
Thermal Performance
- Uf Value (Frame)
- 3.31 W/m²K
- Tested Glazing Configuration
- Ug = 0,922 W/(m²·K), ΦB = -11,668 W/m (referans hesap)

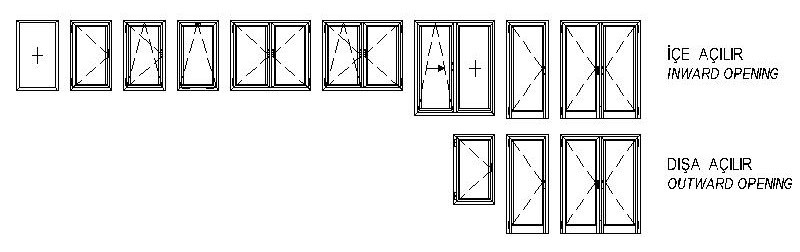

Gallery
