ASAŞ Sliding System 7400
PVC sliding system with 74–137 mm frame options and 3–5 chambers; 2-, 3- and 4-panel combinations for wide openings.
The sliding series can be applied to wide openings as windows and doors in two-, three- and four-panel combinations for a more open view. Quality glazing from 4 to 30 mm can be used for maximum thermal and acoustic insulation.
Technical Specifications
- Frame Depth
- 74 / 76 / 94.5 / 137 mm
- Glass Thickness Range
- 4–30 mm
Performance Classes (EN Standards)
- Wind Load Resistance
- C3/B3
- Water Tightness
- 4A
- Air Permeability
- Class 3
Key Features
- Can be applied to wide openings as windows and doors in two-, three- and four-panel combinations.
- Sashes slide along their own axis instead of swinging open, saving interior space.
- Features a sliding frame with frame and mullion sections; insect screens can be fitted to all sliding frames.
- Its drainage-friendly design delivers high water tightness.
Technical Data
- Frame Depth
- 74 / 76 / 94,5 / 137 mm
- Number of Chambers
- 3, 4, 5
- Profile Class
- Class B
- Gasket System
- EPDM, TPV, brush seal
- Gasket Type / Colour
- TPE or EPDM · Black or grey
- Glass Thickness
- 4, 20, 24, 30 mm
Colour Options
PVC Profile Colours
-
White
-
Grey
-
Cream
Laminate Colours / Finishes
-
Black Brown 8518
8518
-
_-_Kopya-837.jpg)
Earl Platinum
-
Anthracite Grey 7016
7016
-
Anthracite Grey 7016 Smooth 2
7016
-
-835.jpg)
Quartz Platinum
-
Dark Oak
-
Mahogany
-
Walnut
-
Golden Oak
-
Knotty Winchester
-
Smooth Black 2
-
Ash C-35N Smooth
C-35N
-
Flemish Gold
C-33N
-
Trumpet (Mink)
C-32N
-
Pyrite
-
-849.jpg)
Brushed Aluminium Effect
-
Yakisugi
-
Black Ulti-Matt
-
Anthracite Grey 7016 Ulti-Matt
7016
-
Cream White
1379
-
Turner Oak
Documents & Certificates
Download technical sheets, brochures and certificates as PDF.
-
Technical Sheet
Technical Properties & Application Options
-
Brochure
Sliding Systems Brochure

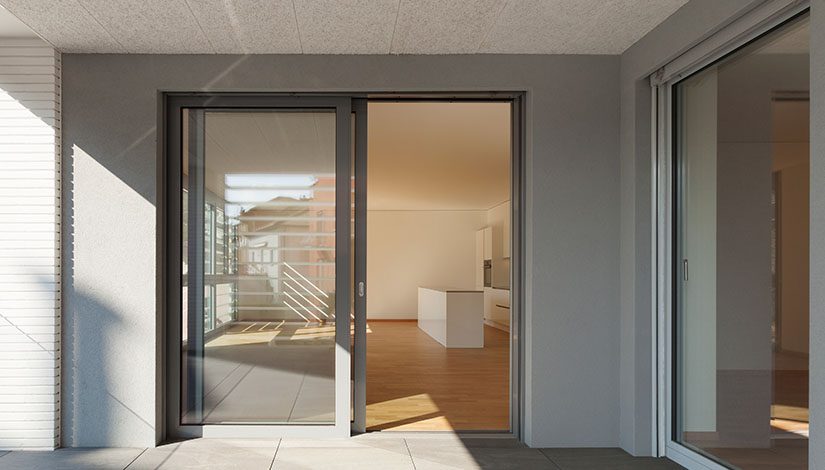

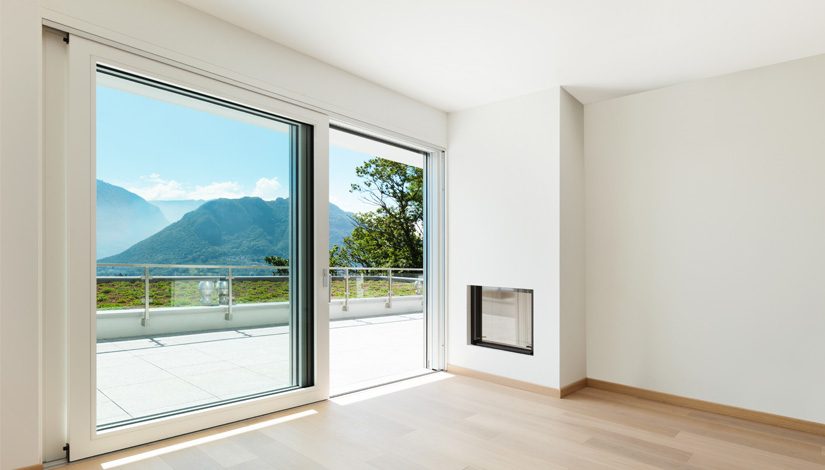

Gallery

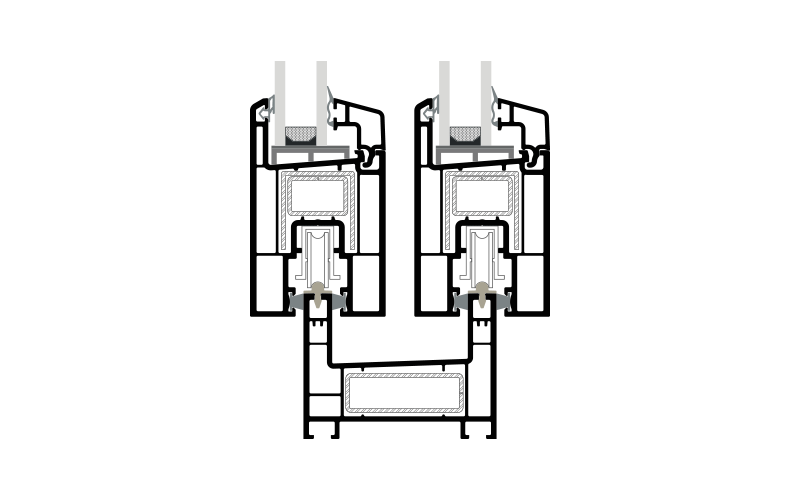

Cross-Section Detail
