ASAŞ Hebe-Schiebe Lift & Slide System
170 mm frame, 70 mm sash; a reinforced, Class A lift & slide system for wide openings.
The ASAŞPEN Hebe-Schiebe lift & slide system offers uninterrupted views with large glass surfaces across wide openings. Its 170 mm frame and 70 mm sash depth, 5–7 chamber Class A profiles and glazing up to 40 mm deliver high thermal and acoustic insulation.
Technical Specifications
- Frame Depth
- 170 mm
- Glass Thickness Range
- 4–40 mm
Thermal Performance
- Uw Value (Overall Window)
- 2.57 W/m²K
- Uf Value (Frame)
- 1.5 W/m²K
Acoustic Performance
- Sound Insulation Index (Rw)
- 31 dB
Performance Classes (EN Standards)
- Wind Load Resistance
- C4/B5
- Water Tightness
- 7A
- Air Permeability
- Class 3
Key Features
- Reinforced construction for wide openings.
- Provides thermal and acoustic insulation with quality glazing from 20 to 40 mm.
- Inner / outer gaskets and brush seals ensure high tightness.
- Available with cream and grey body colours in addition to white.
Technical Data
- Frame Depth
- 170 mm
- Sash Depth
- 70 mm
- Number of Chambers
- 5, 6, 7
- Profile Class
- Class A
- Gasket System
- Inner / outer gasket, brush seal
- Gasket Type / Colour
- EPDM · Black or grey
- Glass Thickness
- 4, 14, 20, 24, 28, 29, 34, 40 mm
Colour Options
PVC Profile Colours
-
White
-
Grey
-
Cream
Laminate Colours / Finishes
-
Black Brown 8518
8518
-
_-_Kopya-837.jpg)
Earl Platinum
-
Anthracite Grey 7016
7016
-
Anthracite Grey 7016 Smooth 2
7016
-
-835.jpg)
Quartz Platinum
-
Dark Oak
-
Mahogany
-
Walnut
-
Golden Oak
-
Knotty Winchester
-
Smooth Black 2
-
Ash C-35N Smooth
C-35N
-
Flemish Gold
C-33N
-
Trumpet (Mink)
C-32N
-
Pyrite
-
-849.jpg)
Brushed Aluminium Effect
-
Yakisugi
-
Black Ulti-Matt
-
Anthracite Grey 7016 Ulti-Matt
7016
-
Cream White
1379
-
Turner Oak
Documents & Certificates
Download technical sheets, brochures and certificates as PDF.
-
Technical Sheet
Technical Properties & Application Options
-
Brochure
Product Brochure

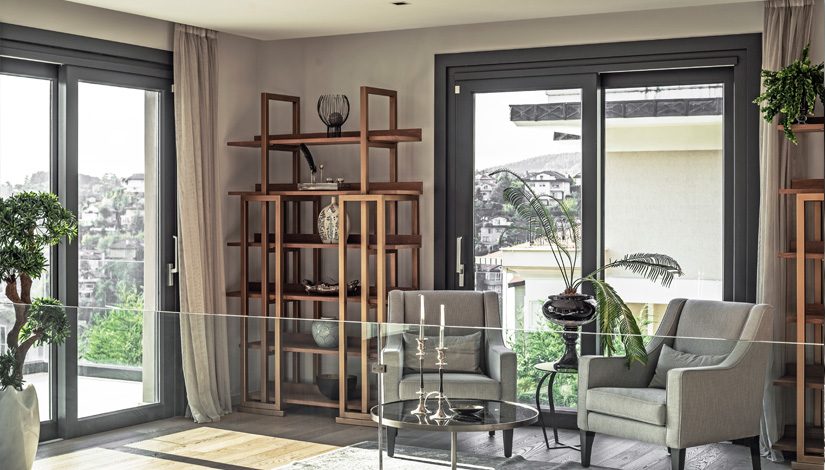

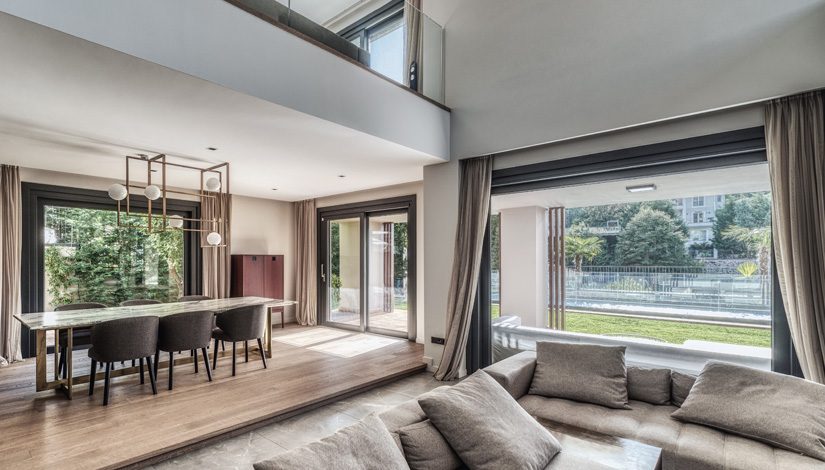

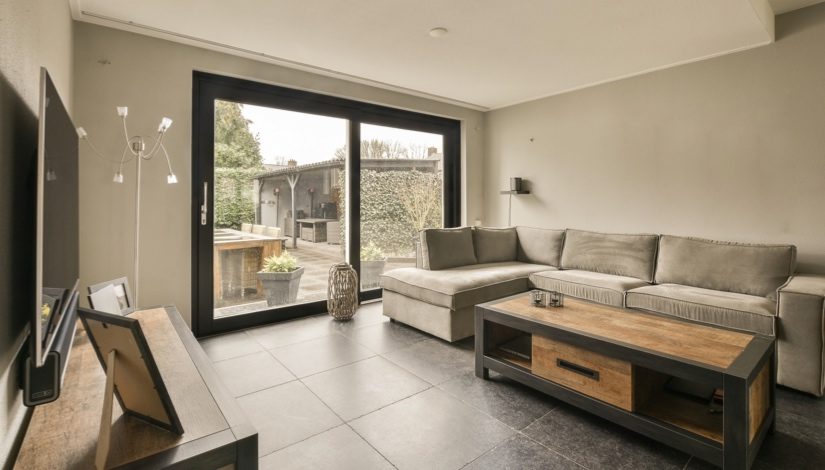

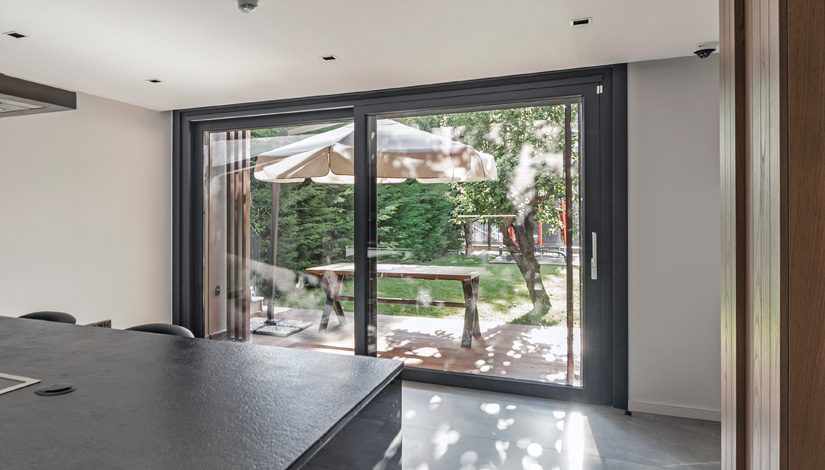

Gallery

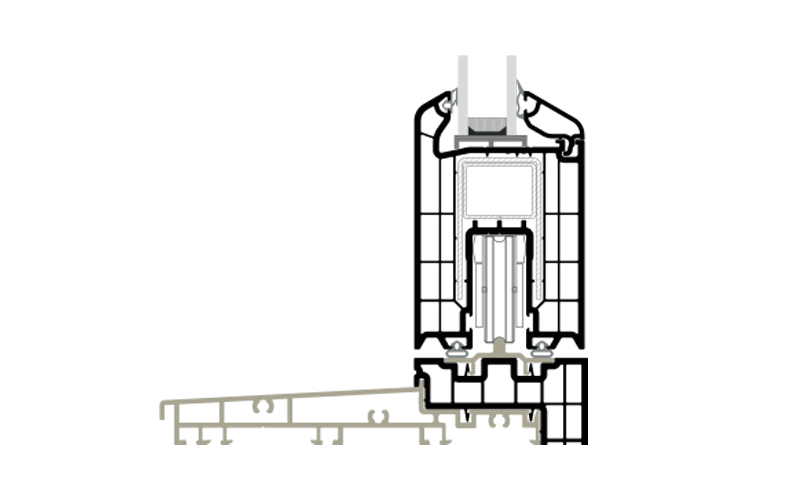

Cross-Section Detail
