ASAŞ Inova 76 PH Passive House Window System
Passive House Institute certified component; a new-generation window system with Uw 0.99 W/m²K.
The INOVA 76 mm PH system stands out among new-generation window systems for its high insulation performance, understated aesthetics and versatility. It has been tested and certified as a component by the Passive House Institute.
Technical Specifications
- Frame Depth
- 76 mm
- Glass Thickness Range
- 24–50 mm
Thermal Performance
- Uw Value (Overall Window)
- 0.99 W/m²K
Performance Classes (EN Standards)
- Wind Load Resistance
- C5/B5
- Water Tightness
- E1500
- Air Permeability
- Class 4
Key Features
- Component certified by the Passive House Institute (Component ID: 2251wi04).
- Flush sashes (aligned with the frame) can be applied on the exterior facade.
- The glazing bead system allows both 90° and 45° applications.
- Delivers high thermal and acoustic insulation.
- Minimalist design with clean, straight lines.
Technical Data
- Frame Width
- 76 mm
- Frame Inner Height
- 60 mm
- Sash Width
- 94 mm
- Sash Height (inner / outer)
- 55 / 52 mm
- Number of Chambers
- 5, 6, 7
- Glass Thickness
- 24–50 mm
Colour Options
PVC Profile Colours
-
White
-
Grey
-
Cream
Laminate Colours / Finishes
-
Black Brown 8518
8518
-
_-_Kopya-837.jpg)
Earl Platinum
-
Anthracite Grey 7016
7016
-
Anthracite Grey 7016 Smooth 2
7016
-
-835.jpg)
Quartz Platinum
-
Dark Oak
-
Mahogany
-
Walnut
-
Golden Oak
-
Knotty Winchester
-
Smooth Black 2
-
Ash C-35N Smooth
C-35N
-
Flemish Gold
C-33N
-
Trumpet (Mink)
C-32N
-
Pyrite
-
-849.jpg)
Brushed Aluminium Effect
-
Yakisugi
-
Black Ulti-Matt
-
Anthracite Grey 7016 Ulti-Matt
7016
-
Cream White
1379
-
Turner Oak
Documents & Certificates
Download technical sheets, brochures and certificates as PDF.
-
Certificate
Passive House Component Certificate
Passive House Institute · Component ID: 2251wi04 · Validity stated on document: 31.12.2025

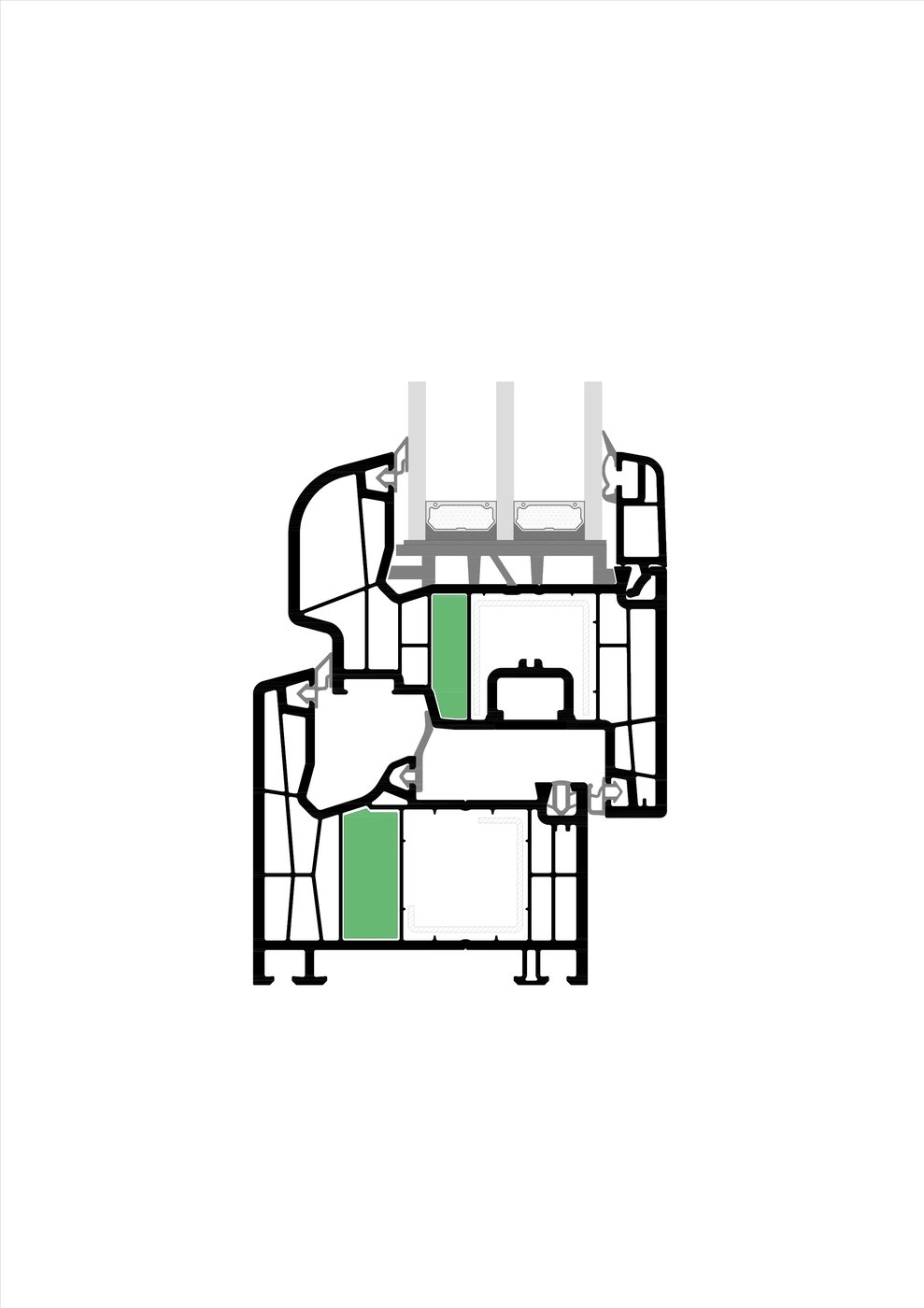

Cross-Section Detail
