ASAŞ Elegans 70 PVC Window & Door System
ELEGANS-70 ASAŞ · PVC Door&Window

ASAŞ Elegans 70 PVC Window & Door System

70 mm, 5-chamber PVC system with glazing up to 40 mm for residential projects.

Offers alternative solutions for those seeking economy and high quality together in residential and apartment projects. Its 5-chamber design accepts quality glazing from 4 to 40 mm for maximum sound and thermal insulation, with clean straight lines and an angled drainage chamber.

Submit Project for This System Download Documents & Certificates View 3D Model

Technical Specifications

Frame Depth
70 mm
Number of Chambers
5
Glass Thickness Range
4–40 mm

Key Features

  • The architrave frame profile gives a clean wall-to-frame junction on the interior.
  • Flat and grooved sash options offer different looks.
  • Works seamlessly with insect screen, roller shutter and shutter systems.
  • Its drainage-friendly design delivers high water tightness.

Technical Data

Frame Depth
70 mm
Number of Chambers
5
Profile Class
Class B
Gasket System
Inner / outer gasket
Gasket Type / Colour
TPE, EPDM · Black / grey
Glass Thickness
4, 14, 20, 24, 28, 29, 34, 40 mm

Colour Options

PVC Profile Colours

  • ELEGANS-70 White

    White

  • ELEGANS-70 Grey

    Grey

  • ELEGANS-70 Cream

    Cream

Laminate Colours / Finishes

  • ELEGANS-70 Black Brown 8518

    Black Brown 8518

    8518

  • ELEGANS-70 Earl Platinum

    Earl Platinum

  • ELEGANS-70 Anthracite Grey 7016

    Anthracite Grey 7016

    7016

  • ELEGANS-70 Anthracite Grey 7016 Smooth 2

    Anthracite Grey 7016 Smooth 2

    7016

  • ELEGANS-70 Quartz Platinum

    Quartz Platinum

  • ELEGANS-70 Dark Oak

    Dark Oak

  • ELEGANS-70 Mahogany

    Mahogany

  • ELEGANS-70 Walnut

    Walnut

  • ELEGANS-70 Golden Oak

    Golden Oak

  • ELEGANS-70 Knotty Winchester

    Knotty Winchester

  • ELEGANS-70 Smooth Black 2

    Smooth Black 2

  • ELEGANS-70 Ash C-35N Smooth

    Ash C-35N Smooth

    C-35N

  • ELEGANS-70 Flemish Gold

    Flemish Gold

    C-33N

  • ELEGANS-70 Trumpet (Mink)

    Trumpet (Mink)

    C-32N

  • ELEGANS-70 Pyrite

    Pyrite

  • ELEGANS-70 Brushed Aluminium Effect

    Brushed Aluminium Effect

  • ELEGANS-70 Yakisugi

    Yakisugi

  • ELEGANS-70 Black Ulti-Matt

    Black Ulti-Matt

  • ELEGANS-70 Anthracite Grey 7016 Ulti-Matt

    Anthracite Grey 7016 Ulti-Matt

    7016

  • ELEGANS-70 Cream White

    Cream White

    1379

  • Turner Oak

Documents & Certificates

Download technical sheets, brochures and certificates as PDF.

Gallery

ASAŞ Elegans 70 PVC Window & Door System
ASAŞ Elegans 70 PVC Window & Door System

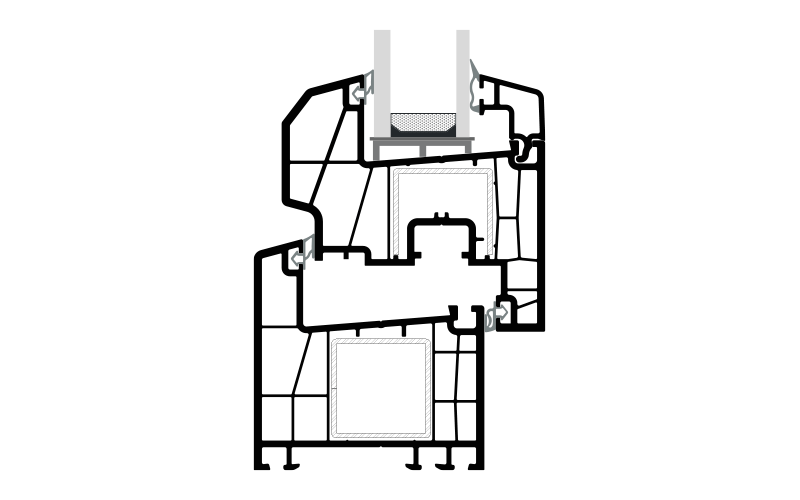

Cross-Section Detail

ASAŞ Elegans 70 PVC Window & Door System — Cross-Section Detail
