ASAŞ Inova 76 Centre-Gasket Window & Door System
76 mm, 7-chamber, triple-gasket system; maximum insulation with glazing up to 50 mm.
With a 76 mm width, 7-chamber design, triple-gasket system and compatibility with 50 mm high-insulation glazing, it delivers maximum thermal and acoustic insulation. A centre gasket in addition to the standard frame–sash seals maximises insulation.
Technical Specifications
- Frame Depth
- 76 mm
- Glass Thickness Range
- 24–50 mm
Key Features
- A centre gasket in addition to the standard seals delivers maximum insulation.
- TPE gaskets can be welded at the corners for superior sealing.
- Self-gasketed profiles speed up fabrication.
- Thermally insulated aluminium threshold options allow lower door sills.
Technical Data
- Frame Depth
- 76 mm
- Frame Height (inner / outer)
- 42–46 / 68–72 mm
- Mullion Width (inner / outer)
- 42 / 94 mm
- Window Sash Height
- 57–55 / 83 mm
- Balcony Door Sash Height
- 75–73 / 101 mm
- Large Door Sash Height
- 105–103 / 131 mm
- Glass Thickness
- 24–50 mm
- Chambers (frame / sash / mullion)
- 5–7 / 4–7 / 4–6
Colour Options
PVC Profile Colours
-
White
-
Grey
-
Cream
Laminate Colours / Finishes
-
Black Brown 8518
8518
-
_-_Kopya-837.jpg)
Earl Platinum
-
Anthracite Grey 7016
7016
-
Anthracite Grey 7016 Smooth 2
7016
-
-835.jpg)
Quartz Platinum
-
Dark Oak
-
Mahogany
-
Walnut
-
Golden Oak
-
Knotty Winchester
-
Smooth Black 2
-
Ash C-35N Smooth
C-35N
-
Flemish Gold
C-33N
-
Trumpet (Mink)
C-32N
-
Pyrite
-
-849.jpg)
Brushed Aluminium Effect
-
Yakisugi
-
Black Ulti-Matt
-
Anthracite Grey 7016 Ulti-Matt
7016
-
Cream White
1379
-
Turner Oak
Documents & Certificates
Download technical sheets, brochures and certificates as PDF.
-
Catalogue
Inova Profile Catalogue

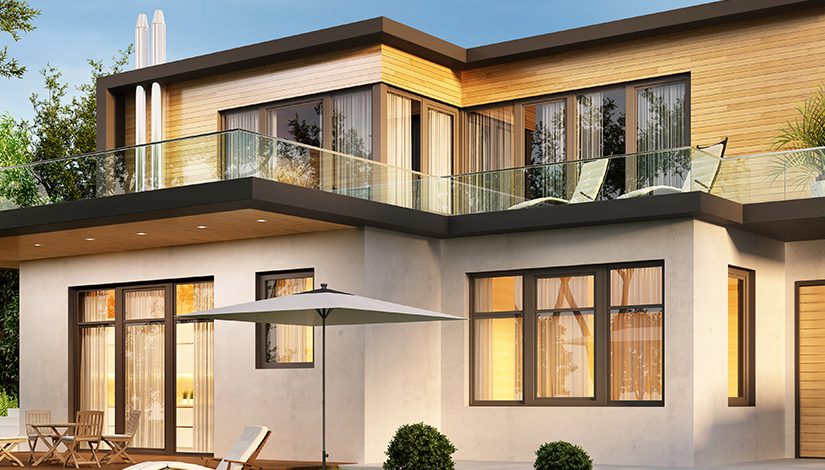

Gallery

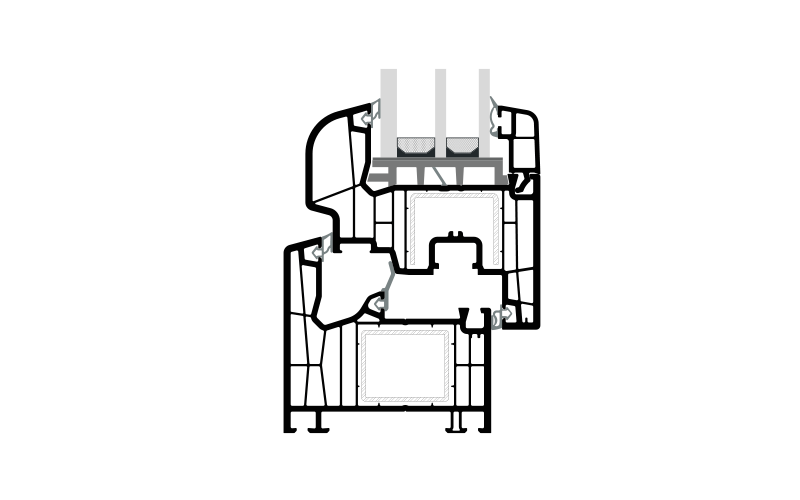

Cross-Section Detail
